BOPP Labelling Machine
High-Volume, Low-Cost Wrap Around Perfection
A bopp labelling machine is an industrial automated system used to process and package products for commercial plants. It is engineered for high throughput and efficiency. Typical production capacities range from 100 to 300 Bottles Per Minute.
For mass-market bottled water and beverages, label aesthetics must meet cost-efficiency. Our BOPP Hot Melt Glue Labelling Machines wrap thin, vibrant film labels entirely around the bottle at extraordinary speeds, using merely drops of hot melt adhesive. This method is incredibly economical compared to standard stickers. The machine features an integrated rotary wheel design, a highly precise glue wheel array, and a rotary knife system that beautifully cuts the continuous roll into perfectly sized labels exactly when needed.
- ✓ Tremendous economic savings on label material
- ✓ Incredibly fast rotary application (up to 300 BPM)
- ✓ Automatic tension control for continuous feed
- ✓ Precision servo-driven rotary cutter
Features & Benefits
- ✓Minimal Glue ConsumptionGlue is only applied in thin micro-strips at the leading and trailing edges of the BOPP label.
- ✓Endless Roll CapacityTakes massive continuous label rolls, drastically minimizing the amount of machine stops for operator reloading.
- ✓Long-life Diamond CuttersExtremely durable rotating cutting blades require infrequent sharpening, providing razor-clean cuts.
- ✓Safety EnclosuresCompletely enclosed operation ensures operator safety around hot-melt glue tanks and high-speed rotary parts.
Technical Specifications
| Production Speed | 100 to 300 Bottles Per Minute |
|---|---|
| Label Material | BOPP Film, OPP, Paper Wrap |
| Container Types | PET Round & Square, Glass Round |
| Glue Type | Standard Hot Melt Adhesive (Operating 130°C-160°C) |
| Cutting Mechanism | Rotary Knife on Central Drum |
| Machine Weight | Approx ~1500 KG to 3000 KG |
Ready to Scale Your Production?
Our engineering team is ready to design a custom solution integrating the BOPP Labelling Machine directly into your facility layout.
Explore Related Machinery
Water Filling Machine
View Details →
Juice Filling Machine
View Details →
Beer Filling Machine
View Details →

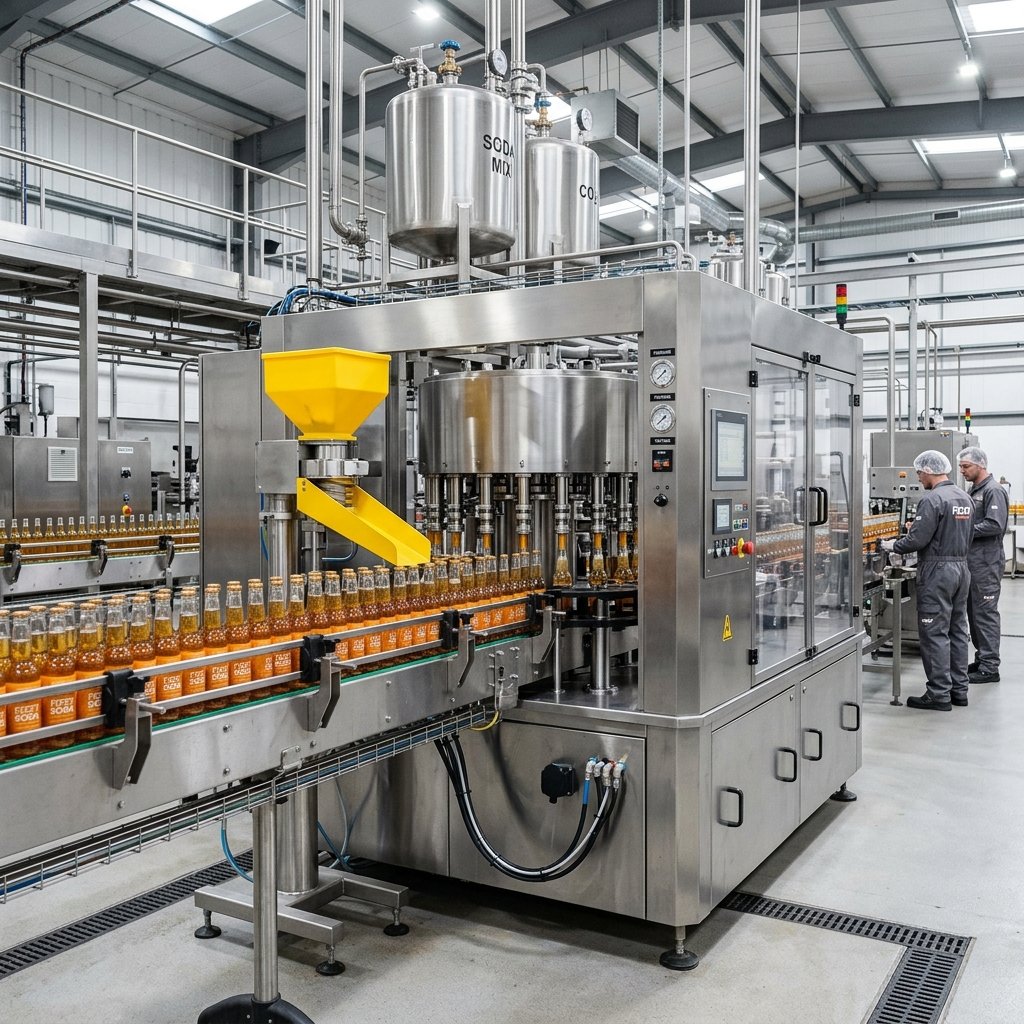

Soda Filling Machine
View Details →
Sticker Labelling Machine
View Details →

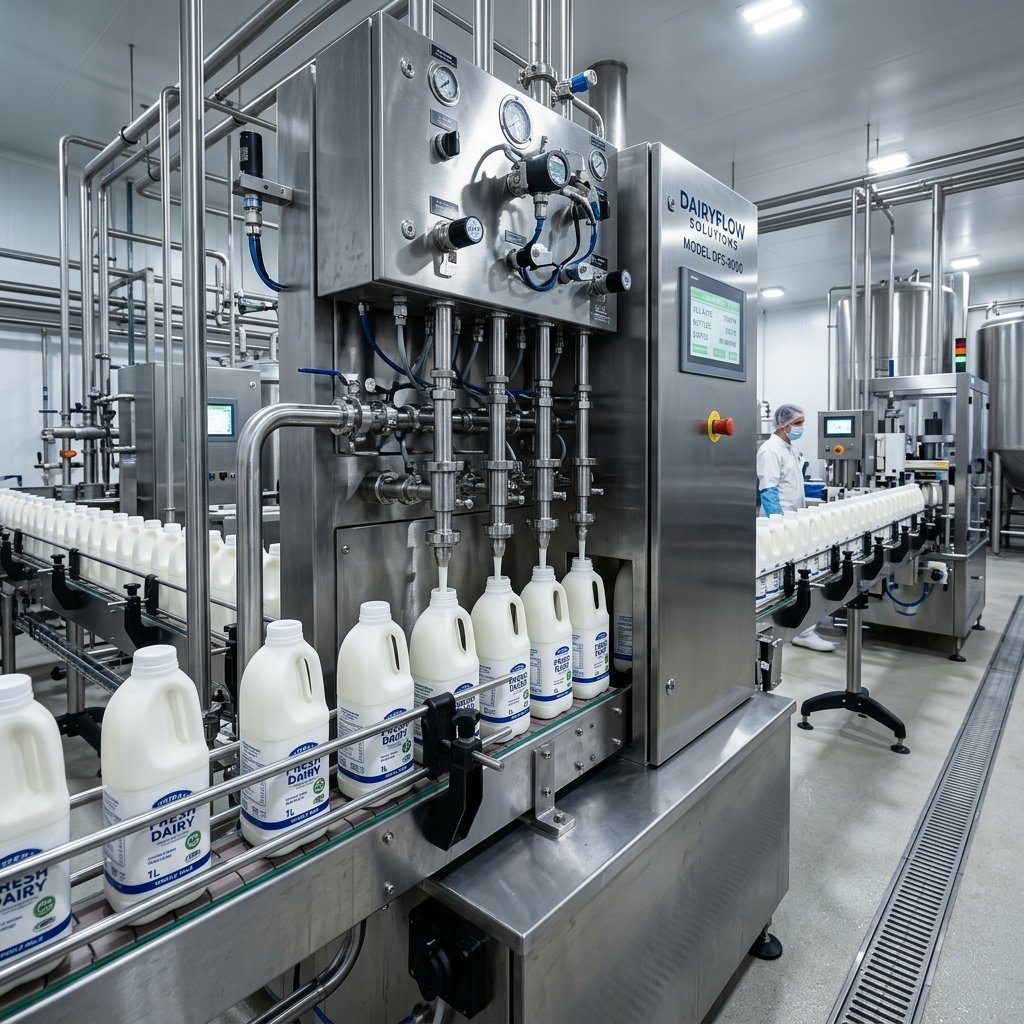

Milk & Dairy Filling Machine
View Details →

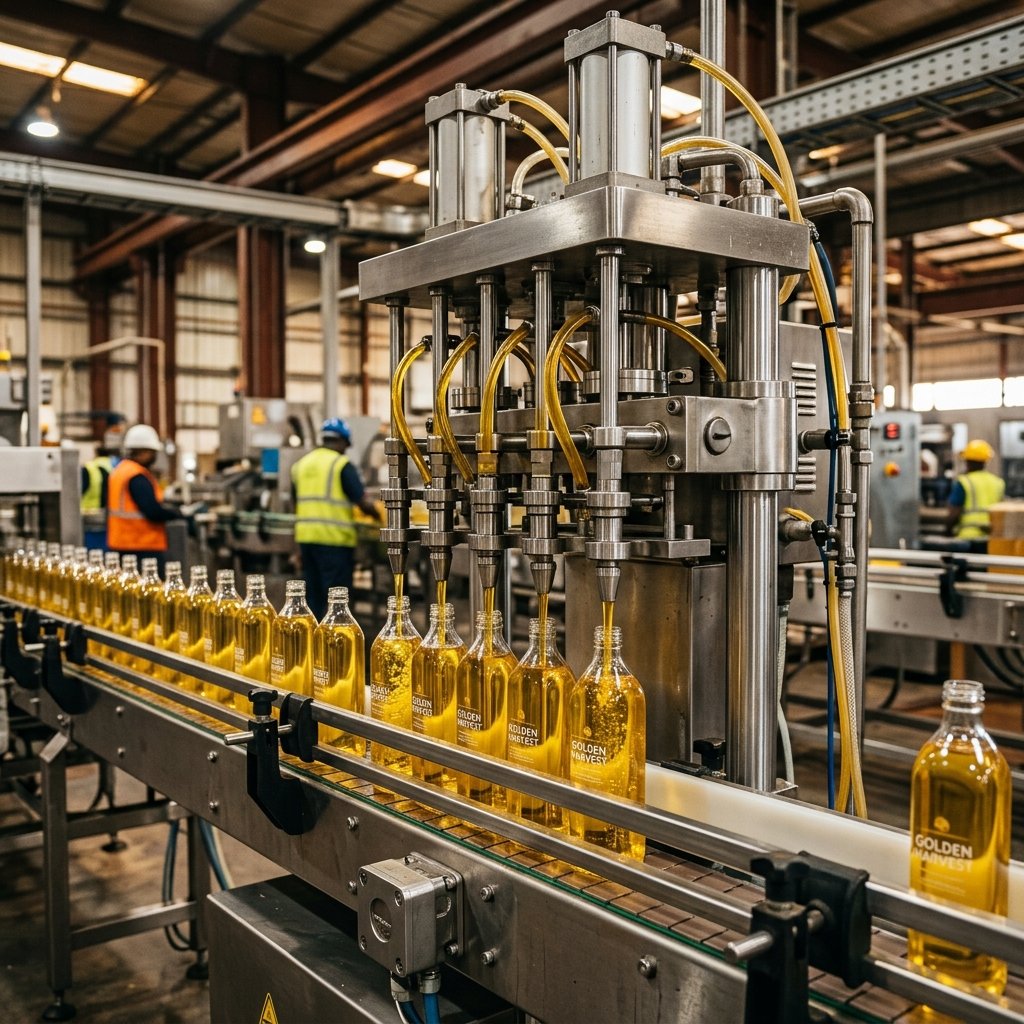

Edible Oil Filling Machine
